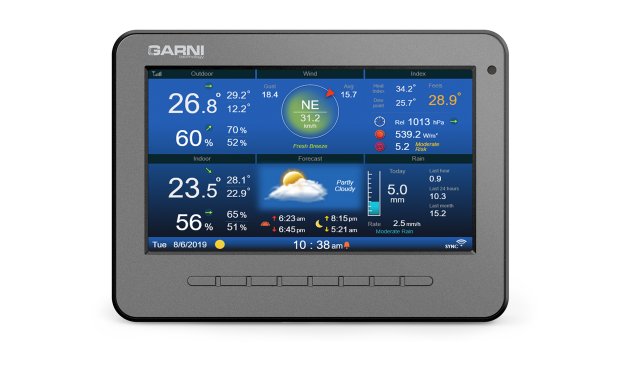

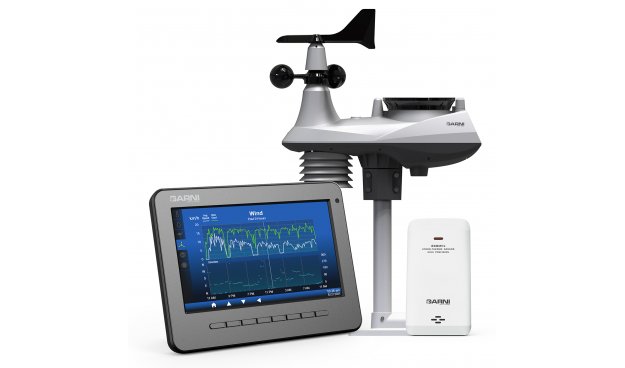

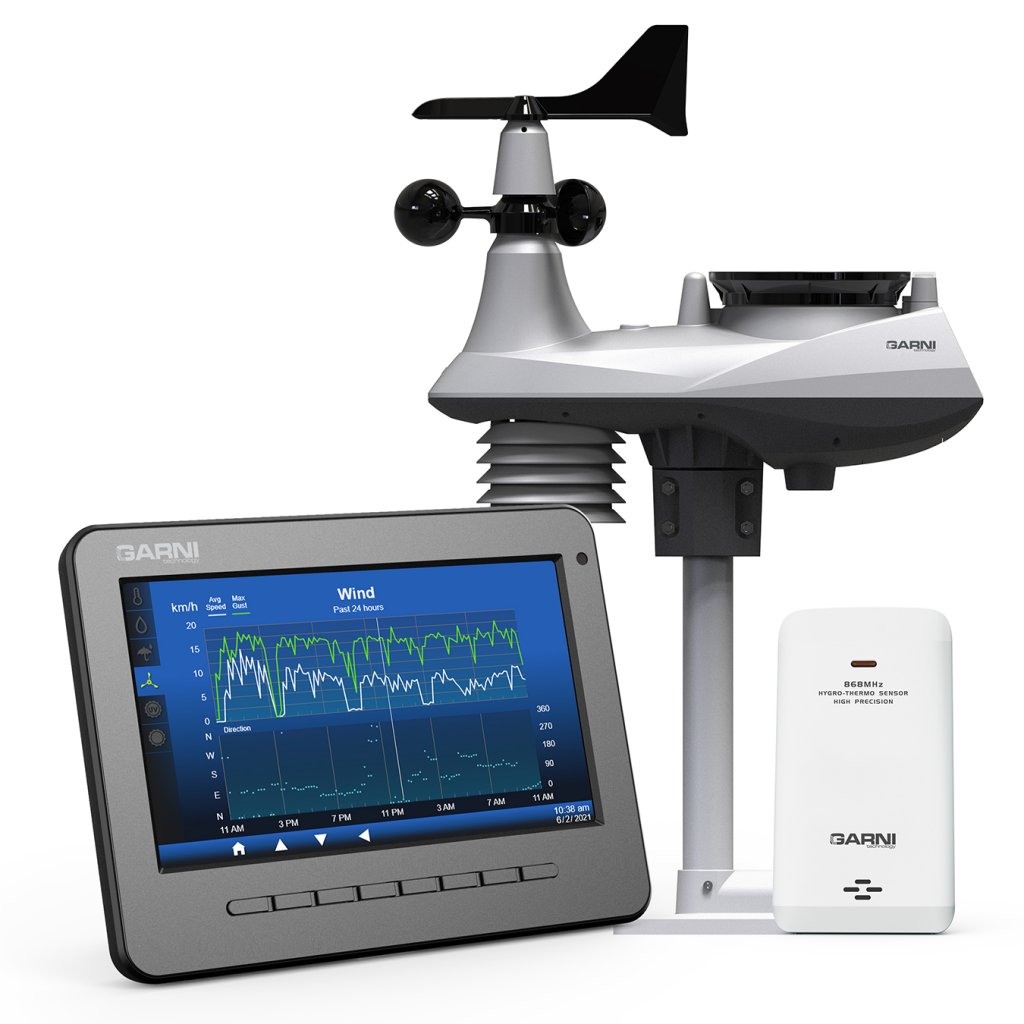

Semi-professional Wi-Fi weather station with colour TFT HD display, with user interface in English (Czech , German, Dutch, Spanish, French and Italian), integrated 7-in-1 wireless sensor and additional wireless sensor GARNI 055H. The product is using precise and high-quality sensors from the Swiss brand SENSIRION.
6 animated weather forecast icons
Time and date are adjusted from the Internet
UV radiation measurement
waterproof cover
wireless sensor signal range up to 150 m in open area
7 channels
7 in 1 wireless sensor included
Comming soon

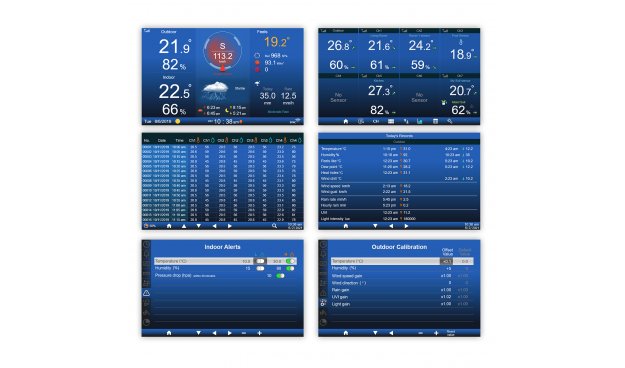

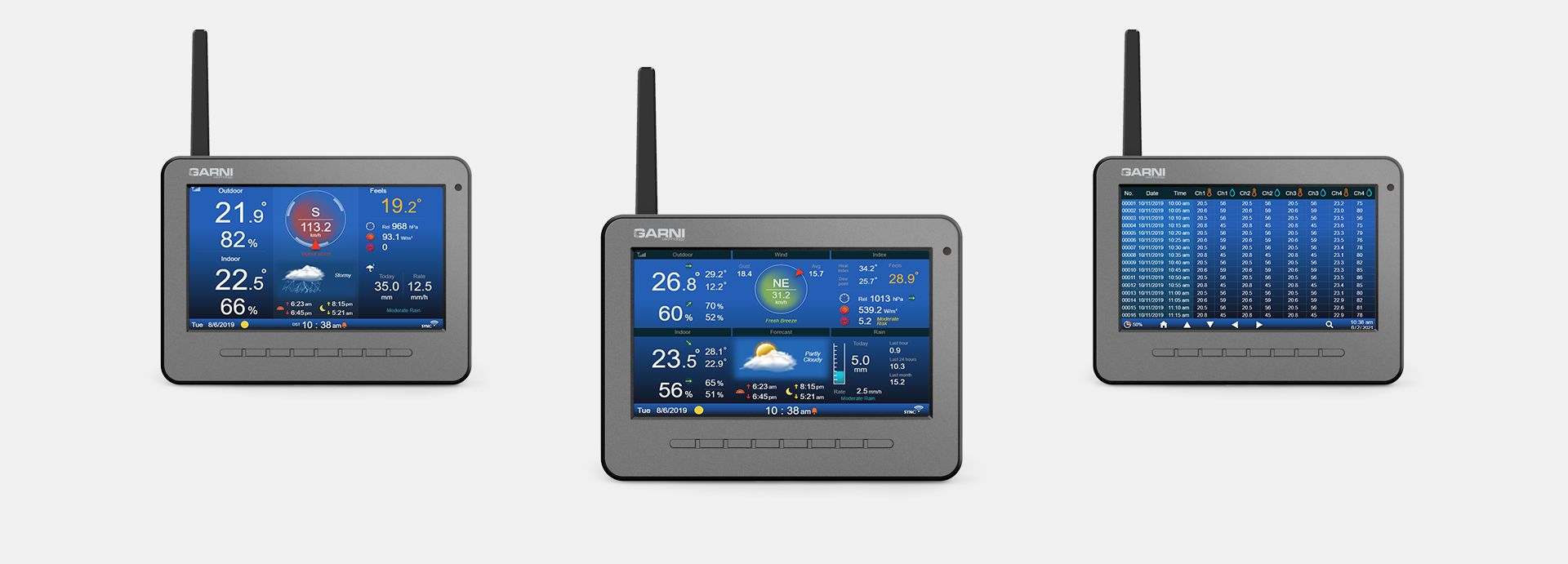

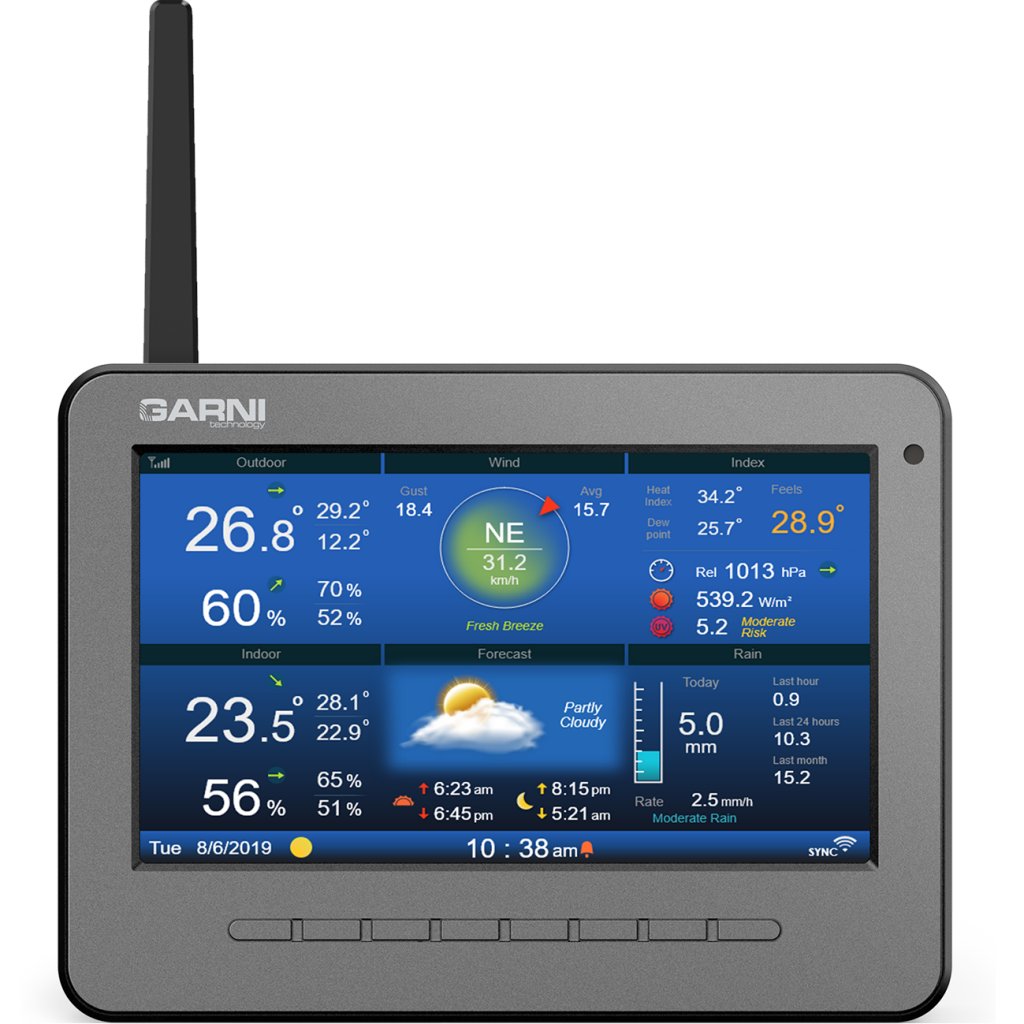

With many options for displaying measured data. The menu is localized in English, German, Czech, French, Italian, Spanish and Dutch.

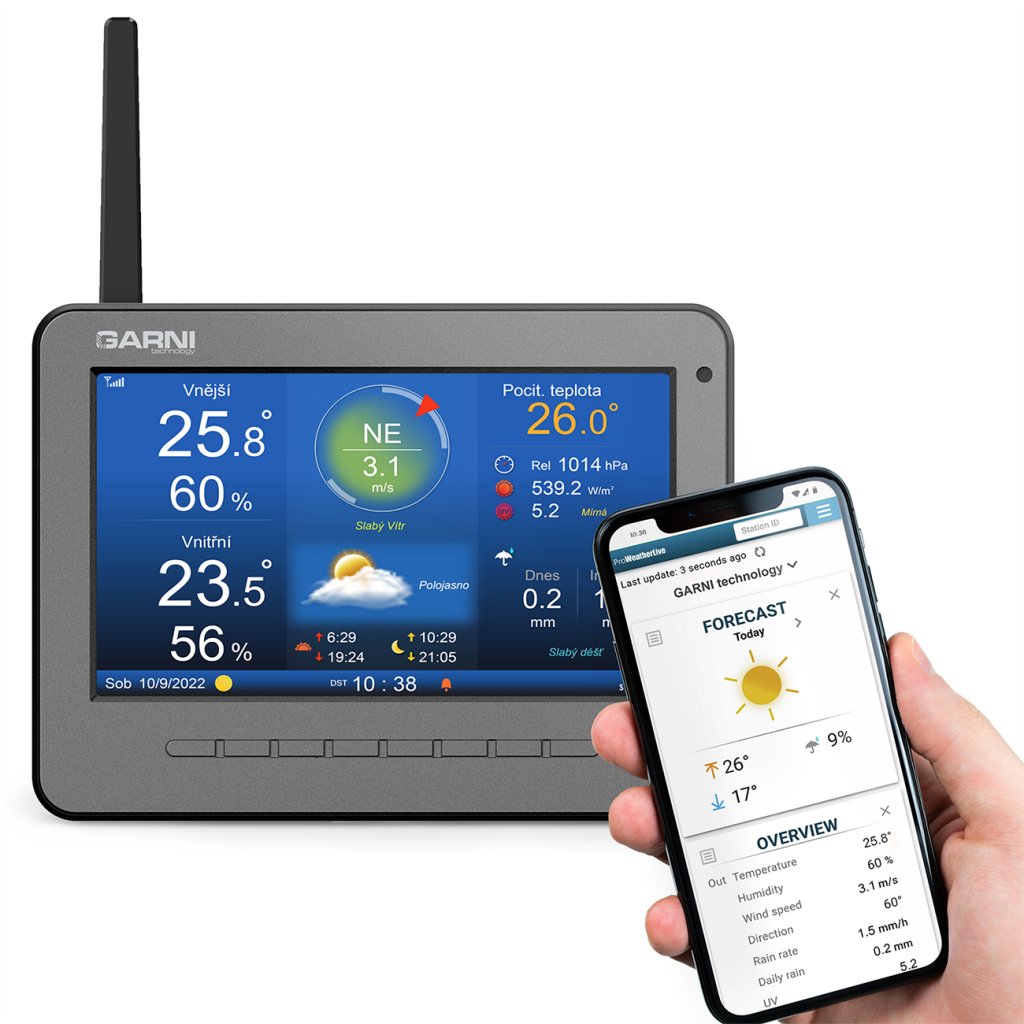

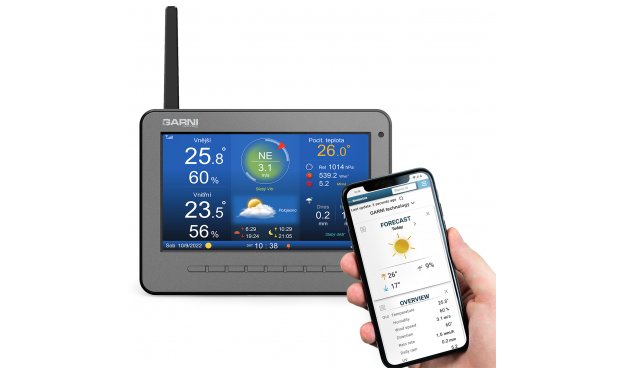

Transfer of measured data to the ProWeatherLive, Weather Underground and Weathercloud servers, or to the user's own server.

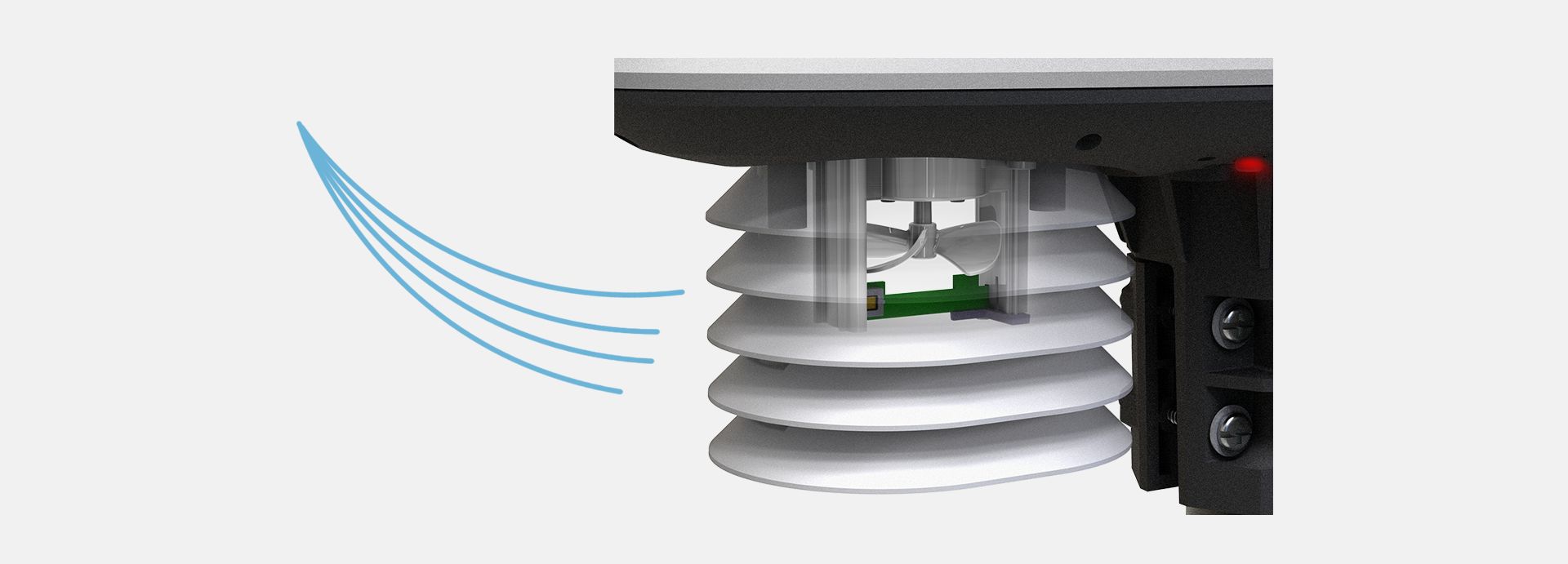

Integrated wireless sensor 7-in-1 is equipped with a built-in fan inside the radiation shield to ensure accurate measurements.
Up to 7 wireless sensors can be connected to measure temperature, relative humidity and/or water temperature.

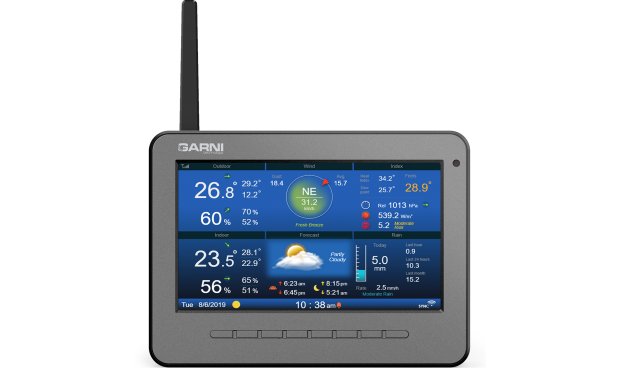

Foldable antenna to ensure data transmission over the maximum possible distance.

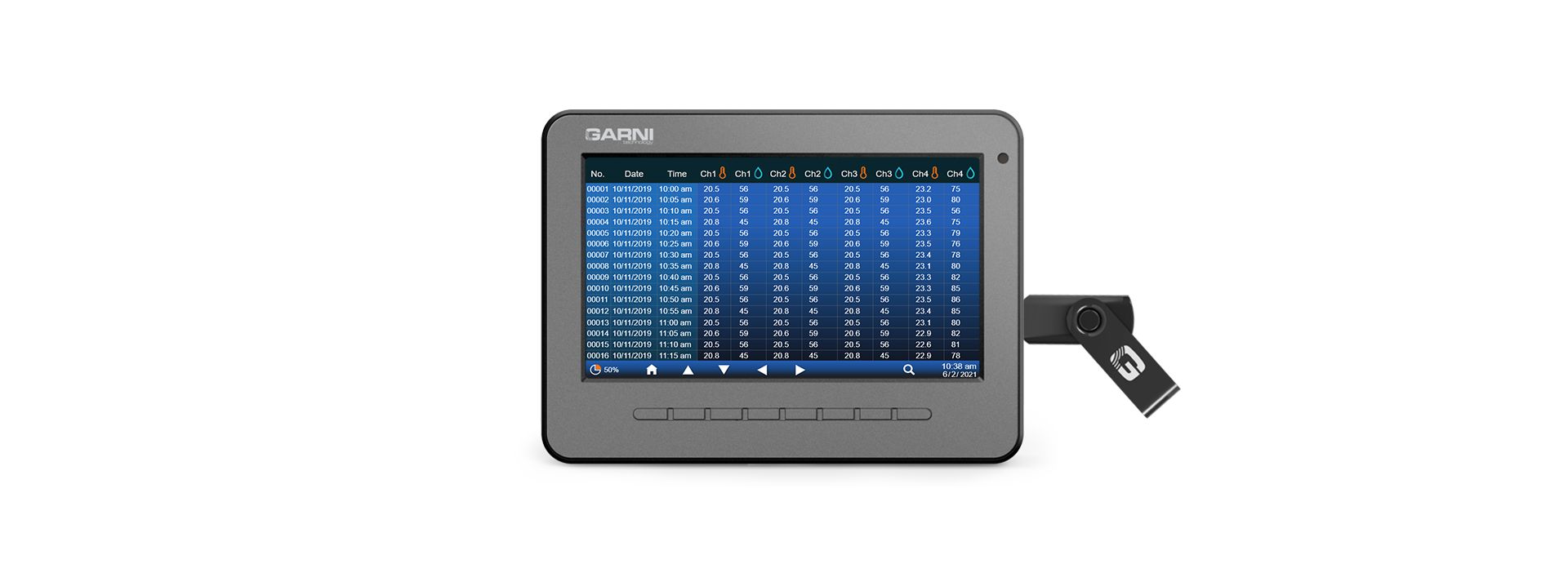

The built-in USB port allows you to connect a USB flash drive to automatically save data every 5, 10, or 30 minutes in .csv format.

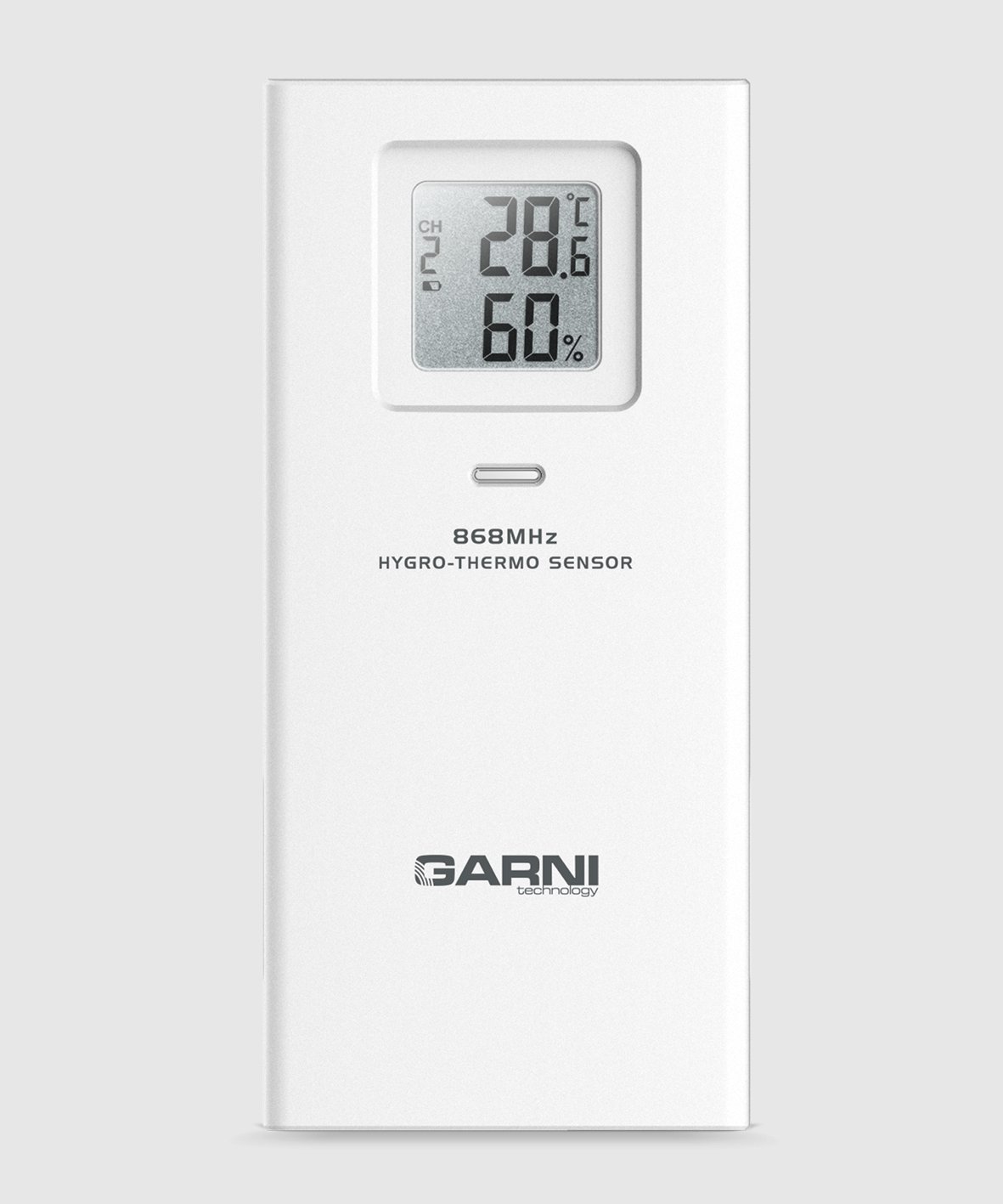

Wireless sensor for temperature and relative humidity measurement for the weather stations GARNI 3015 Arcus, GARNI 2055 Arcus, GARNI 1055 Arcus, GARNI 1025 Arcus, GARNI 935PC, GARNI 975 and GARNI 419T.

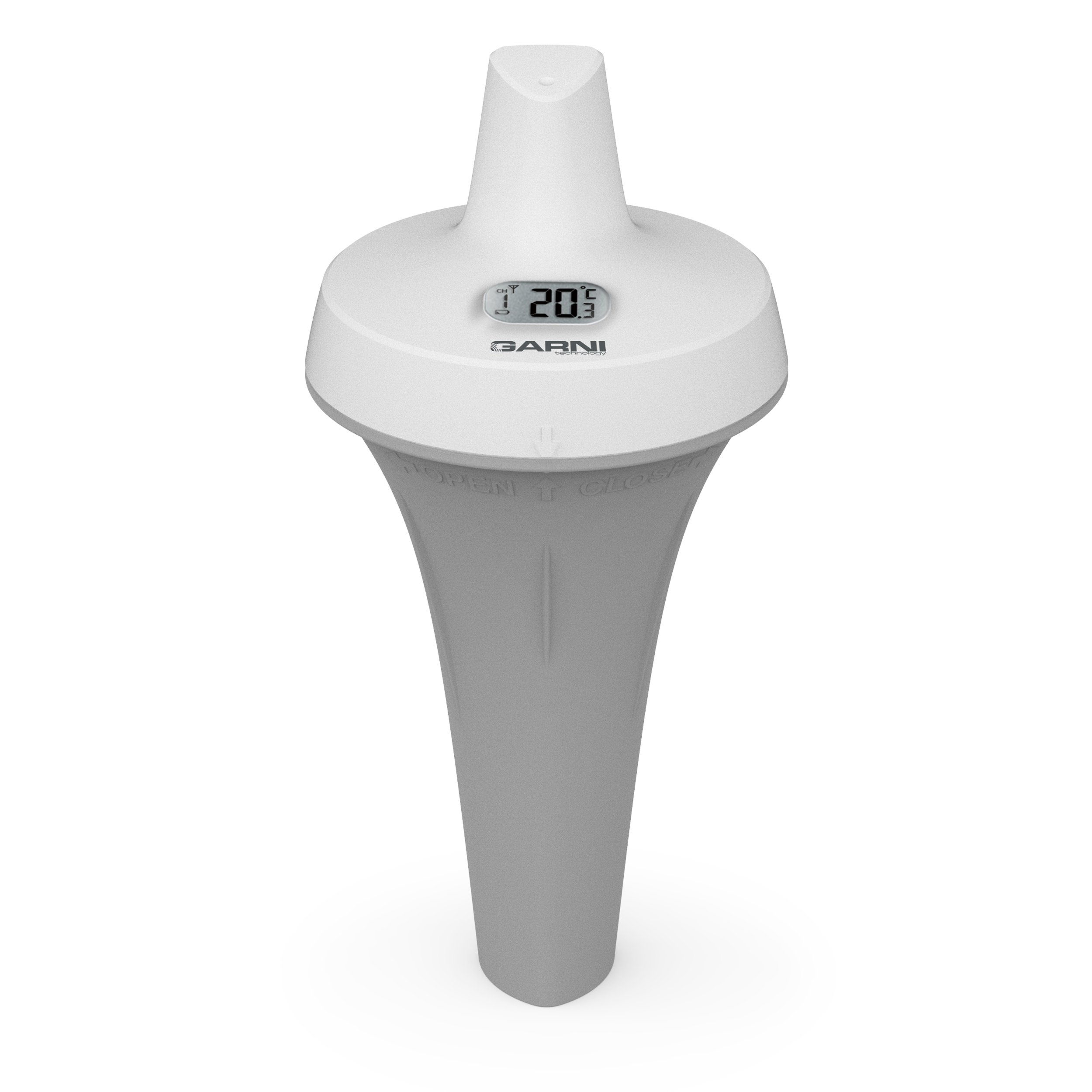

Seven-channel pool wireless temperature sensor, designed for using with weather station GARNI 3015 Arcus, GARNI 2055 Arcus, GARNI 1055 Arcus (with firmware 1.05 and newer), GARNI 975, GARNI 1025 Arcus and smart digital thermo-hygrometer GARNI 419T. We strongly recommend not using it in the cold!

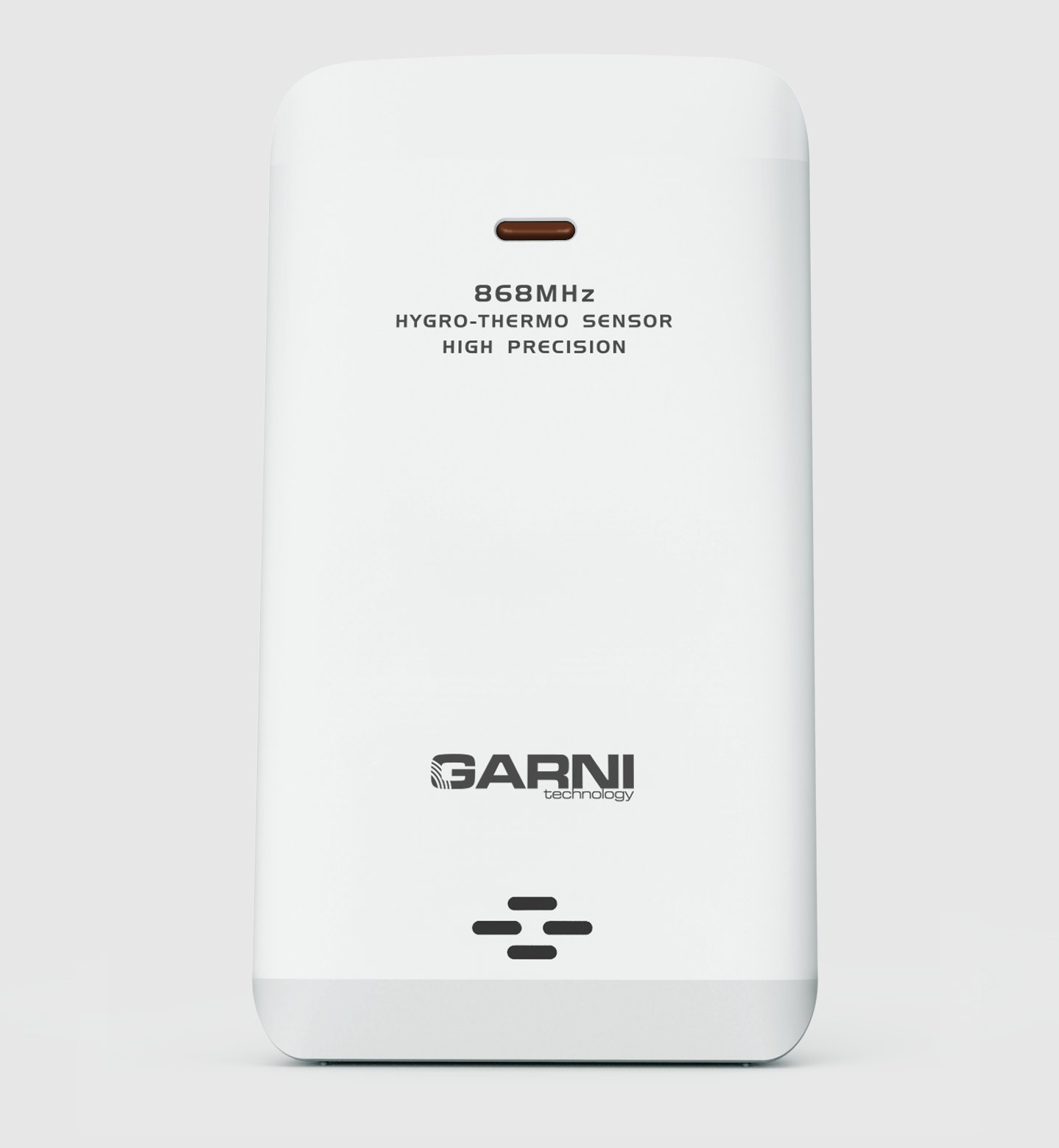

Seven-channel wireless sensor for measuring temperature and relative humidity, designed for Wi-Fi weather station GARNI 3015 Arcus, GARNI 2055 Arcus, GARNI 1085 Arcus, GARNI 975, GARNI 1025 Arcus, GARNI 925T, hobby weather station GARNI 750 and smart digital thermometer with hygrometer GARNI 419T.

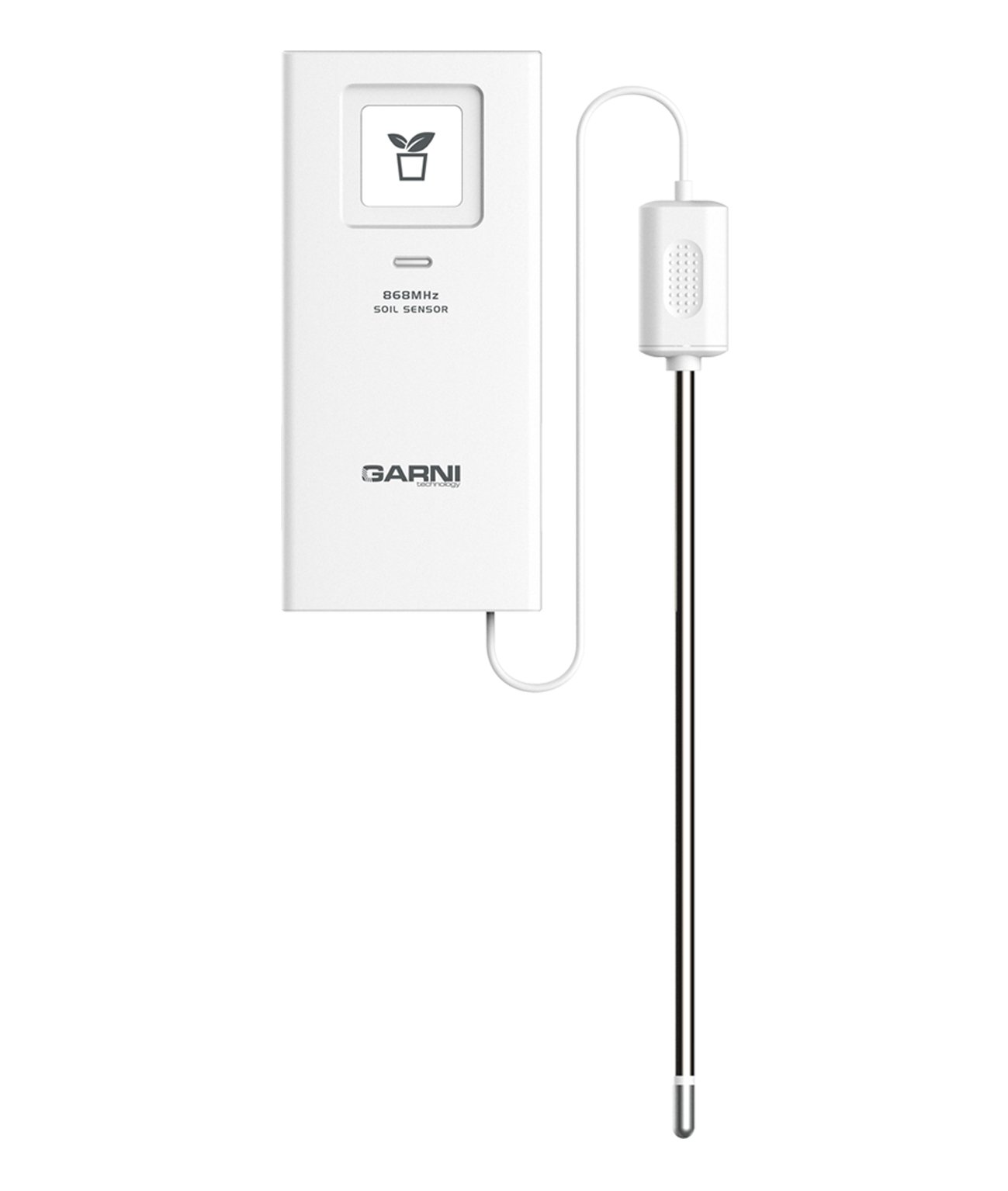

Seven-channel wireless sensor for measuring soil temperature and relative humidity, intended for Wi-Fi weather station GARNI 3015 Arcus, GARNI 2055 Arcus, GARNI 1085 Arcus, GARNI 975, GARNI 1025 Arcus, GARNI 925T, hobby station GARNI 750 and smart digital thermometer with hygrometer GARNI 419T.
| Indoor temperature measurement range / tolerance | -40 ° C to + 60 ° C (-40 ° C to + 5 ° C ± 2 ° C, + 5.1 ° C to + 60 ° C ± 1 ° C) (SENSIRION sensor) |
|---|---|
| Resolution of internal temperature | 0.1 ° C |
| External temperature measurement range / tolerance | Integrated sensor - 40 ° C to + 60 ° C ± 0.4 ° C (SENSIRION sensor) GARNI 055H sensor - 40 ° C to + 60 ° C ± 0.4 ° C (SENSIRION sensor) |
| Resolution of external temperature | 0.1 ° C |
| Internal rel. humidity measurement range / tolerance | 1% to 99% (1 to 20% ± 6.5%, 21 to 80% RH ± 3.5%; 81 to 99% ± 6.5%) (SENSIRION sensor) |
| Resolution of internal relative humidity | 1% |
| External rel. humidity measurement range / tolerance | integrated sensor 1% to 99% (1 to 90% ± 2.5%, 91 to 99% ± 3.5%) (SENSIRION sensor) GARNI 055H sensor 1% to 99% (1 to 90% ± 2.5%, 91 to 99% ± 3.5%) (SENSIRION sensor) |
| Resolution of external relative humidity | 1% |
| Bar. pressure measurement range / tolerance | 540 to 1,100 hPa (relative pressure setting from 930 to 1,050 hPa) (700 to 1100 hPa ± 5 hPa, 540 to 696 hPa ± 8 hPa) |
| Resolution of barometric pressure measurement | 1 hPa, 0.01 inHg, 0.1 mmHg |
| Wind speed measurement range / tolerance | 0 to 50 m / s; <5 mps: ± 0.5 mps; |
| Resolution of wind speed | 0.1 m / s, 0.1 km / h, 0.1 mph, 0.1 knots |
| Wind direction measurement | Yes |
| Resolution of wind direction | 16 positions or 360 ° |
| Measuring rainfall | Yes |
| Resolution of rainfall | 0.1 mm |
| UV radiation measurement range / tolerance | 1 to 16, calibration possible |
| Illumination intensity measurement range / tolerance | 0 to 200 Klux |
| Resolution of light intensity | 0.01 |
| Sunrise and Sunset Time | yes, after entering the time zone and latitude and longitude |
| Graph | yes, indoor and outdoor temperatures and relative humidity including additional sensors, barometric pressure, precipitation, average wind speed and gust, UV index, solar radiation intensity in the past 24 hours |
| Moon phase | Yes |
| Principle of weather forecasts | based on bar changes. |
| Altitude setting | No |
| Absolute / relative barometric pressure display | Yes Yes |
| Number of weather forecast icons | 6 (sunny, partly cloudy, cloudy, rain, rain / storm, snow) |
| Signal range | 150 m in open space - integrated wireless sensor 150 m in open space - wireless sensor for measuring temperature and relative humidity GARNI 055H |
| Data transmission interval | integrated sensor - wind speed and direction, UV index, solar radiation intensity 12 seconds, temperature, relative humidity and precipitation 24 seconds, wireless sensor GARNI 055H for measuring temperature and relative humidity 60 s |
| Transmission frequency of wireless sensors | 868 MHz |
| Number of Channels | 7 |
| Memory to MAX and MIN measured values | - memory for maximum and minimum values since the last reset at midnight or from the beginning of the measurement with date and time of recording: indoor and outdoor temperatures and relative humidity (including additional sensors), sensory temperature, dew point, barometric pressure - memory for maximum values since the last reset at midnight or from the beginning of the measurement with date and time of recording: average value of wind speed and gust, UV index, temperature index, solar intensity and precipitation intensity in mm / h and hourly total in mm - memory for the minimum WindChill value since the last reset at midnight or from the beginning of the measurement with the date and time of recording |
| Internal memory | Yes, to store time and date in the main unit memory during a power failure. |
| Alarm of upper and lower temperature limits | Yes |
| Alarm of upper and lower limit of relative humidity | Yes |
| Other alarms | barometric pressure drop alarm (adjustable from 1 to 10 hPa) alarm of upper and lower sensory temperature limits, dew point alarm upper limit of temperature index, wind speed, wind gust, precipitation intensity, UV index, solar radiation intensity Wind Chill low limit alarm indication of reaching the upper or lower limit by an audible signal and display |
| Display of the Wind Chill value | yes, range -65 to + 18 ° C (at wind speed> 4.8km / h) |
| Date | yes, controlled after internet connection, or manually |
| Time | yes, controlled after internet connection, or manually |
| Alarm | yes, possibility to wake up every day or on weekdays, Pre-alarm function - if the outdoor temperature drops below -3 ° C, the alarm will start 30 minutes earlier than the set wake-up time |
| Snooze | No |
| Date format | 12/24 hours |
| Time zone | yes, from -12 to +13 hours |
| USB host | No |
| Wi-Fi frequency | 2.4 GHz |
| Data sending server | Weather Underground, Weathercloud, ProWeatherLive, pocasi-meteo.cz, own server |
| Dimensions of the main unit display | 154 x 86 mm, color TFT DH display, resolution 800 x 480 px ,, choice of dark and light display background, |
| Digit size - main unit | varies according to current display, size in basic display: indoor and outdoor temperature 12 mm, indoor and outdoor relative humidity 10.5 mm, barometric pressure, UV index, solar intensity 3.5 mm, sensory temperature 9 mm, wind speed, precipitation |
| Main Unit Display Illumination | permanent, the possibility of setting a dark or light background, brightness, contrast, lighting level, setting the night lighting mode automatically, or at a set time |
| Wireless sensor display | No |
| Power supply | main unit mains adapter 100 - 240V, 50 / 60Hz, 0,3A / 5V, 1A, 5W, backup battery 1 pc 3V type CR2032 (button, included) integrated wireless sensor 3 pcs 1.5 V type AA (pencil, not included), solar panel power supply support wireless sensor for measuring temperature and relative humidity 2 pcs 1.5 V type AA (pencil, not included) |
| Overall dimensions | main unit 190 x 140 x 19.5 mm integrated wireless sensor 370.5 x 334 x 144.5 mm wireless sensor for measuring temperature and relative humidity 60 x 113 x 39.5 mm |
| Weight | main unit 322 g (without batteries) integrated wireless sensor 1078 g (without batteries) wireless temperature and relative humidity sensor 84 g (without batteries) |
| Color | main unit anthracite integrated wireless sensor 7-in-1 light gray, rain gauge funnel, weather vane, pinwheel and underside except radiation shield black wireless temperature and relative humidity sensor white |
| Option to stand / hang up the sensor | main unit yes / yes integrated wireless sensor no / no - possibility of mounting on a mast wireless sensor for temperature and relative humidity measurement yes / yes |
| Rainfall needed to flip the rocker | 0.254 mm (0.001 inches) ± 7%, or 1 shuttle overturn |
| Stormy warning | yes flashing weather forecast icon |
| Heat index | yes, outdoor feel temperature (Feels Like) -65 ° C to + 50 ° C, temperature index (Heat Index) from + 26 ° C to + 50 ° C |
| Display of the dew point value | yes, outdoor, range -20 to + 80 ° C |
| Other functions | - possibility to name wireless sensors - the main unit allows storing all measured values on a USB flash drive (with a maximum capacity of 16 GB) at intervals of 5, 10, or 30 minutes for possible further work with data - calibration of temperature, relative humidity, barometric pressure, precipitation, wind speed and direction, UV index and solar radiation intensity |
| Display of the table of measured values | yes, measured and calculated meteorological quantities |
| Moonrise and sunset time | yes, after entering the time zone and latitude and longitude |
| Supported router security | WPA / WPA2, OPEN, WEP (WEP only supports hexadecimal passwords) |
| Int. | supporting HTML5 markup language: latest versions of Google Chrome, Safari, Microsoft Edge, Mozilla Firefox, Opera |
| Wi-Fi standard | 802.11 b / g / n |
| Application | GARNI technology, Počasí Meteo. Weather Underground, ProWeatherLive |
| Supported systems | Android, iOS (Počasí Meteo only Android) |
| Rainfall total measurement range | 0~19999mm |
